Electronic Specificiation |
|
Input Voltage……90VAC～264VAC |
|
Input current……0.5A Max |
|
Input Frequency……47Hz～63Hz |
|
Line regulation……1% Max |
|
Load regulation……±5% |
|
Operating Temperature……0～40℃ |
|
Meet Efficiency Level:IV or V |
|
Safety |
|
CB、UL、PSE、CCC、GS、BS、SAA、KC |
|
EMC |
|
FCC、VCCI、CCC、CE |
|
Output Voltage(DC) |
Output Current |
Output Power |
Dimension |
Safety |
Plug-ln Type |
|
3.0V～5.0V |
0.1A～3.2A |
16.0W MAX |
79*42*32 |
CCC、UL、PSE |

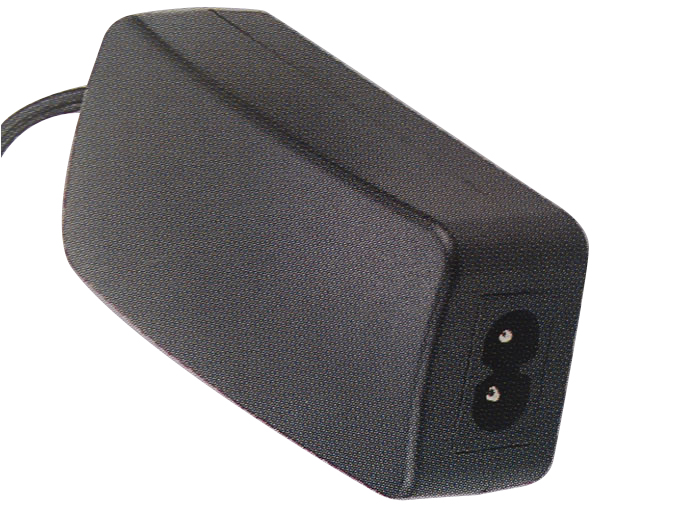

lnterchangeable AC Plug Type |
|
5.1V～8.0V |
0.1A～3.13A |
18.0W MAX |
GS、KC |
||
|
8.1V～9.0V |
0.1A～2.00A |
18.0W MAX |
BS |
||
|
9.1V～15.0V |
0.1A～2.00A |
18.0W MAX |
SAA |
||
|
18.0V～24.0V |
0.1A～1.00A |
18.0W MAX |
|
||
|
24.1V～36.0V |
0.1A～0.74A |
18.0W MAX |
|
